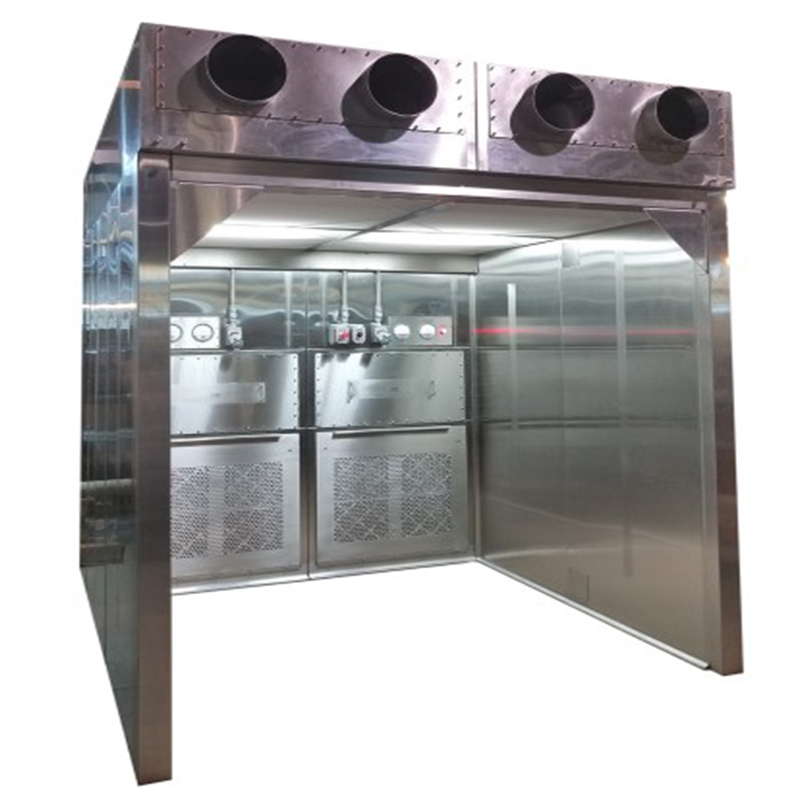

Single Pass High Containment & Extraction Booth CI-1 DIV-1 Explosion Proof

Single Pass High Containment & Extraction Booth CI-1 DIV-1 Explosion Proof 1

Single Pass High Containment & Extraction Booth CI-1 DIV-1 Explosion Proof

ISI

Isolation Systems, Inc designs and manufactures custom, GMP aseptic containment, RABS, and isolators.

Request A Quote

Submit

We respect your privacy.

Want a quote with special pricing?
There are better deals to be had! Create an account with us or give us a call to learn more about account-specific pricing.

Create your account

Need an expert opinion?

If you have questions about configuration or finding the right accessories, give us a call. Our in-house experts know the ins and outs of every solution we carry because we service everything we sell.

Call us here

After you buy, you shouldn’t have to wait weeks for your gear to arrive. We ship fast so you can keep your cleanroom project on schedule.

We service everything we sell. That means you get faster troubleshooting support and better response times than you would with other manufacturers or manufacturer’s reps.

Special pricing is available for your business. Contact us and set up an account to make sure you get the best price available on every purchase.

We guarantee you’ll get the right instrument for your cleanroom. If it isn’t exactly right, we’ll swap it out and find the right choice. If for some reason we don’t carry what you need, we’ll point you to a source that does (we’ll never sell you an alternative that doesn’t do exactly what you need it to do).

Description

Standard Features:

304 stainless steel construction with #4 finish.
2” sq. 14 ga 304 stainless steel structural frame with #4 finish.
Room side replaceable supply down-flow HEPA filtration 99.99% efficient @ .3 microns. Gel seal to the plenum.
Room side replaceable high volume HEPA intakes for total exhaust or re-circulating configurations. Gel seal to the plenum.
High or Low wall extraction intake grilles.
Pre-filtration Merv-8 eff ashrae pleated disposable.
Polyethylene removable protective diffuser screens for even air distribution over the operator.
304 stainless steel side walls with flush mount service access panels and penetrations.
Recessed Cl-1 Div-1 LED lighting.
Magnehelic Differential Pressure Gauges to monitor system and filter pressure differential as required.
Filter challenge introduction and sample ports.
Cl-1 Div-1 blowers.
Cl-1 Div-1 power and lighting on/off switches.
Cl-1 Div-1 Emergency Stop Switch.
Variable blower speed control.
Electrical: 230/460VAC 60HZ / 3ph.

Optional Features:

316L stainless steel construction.
Hydrophobic HEPA filtration.
ULPA filtration 99.9995% efficient @ .12 microns.

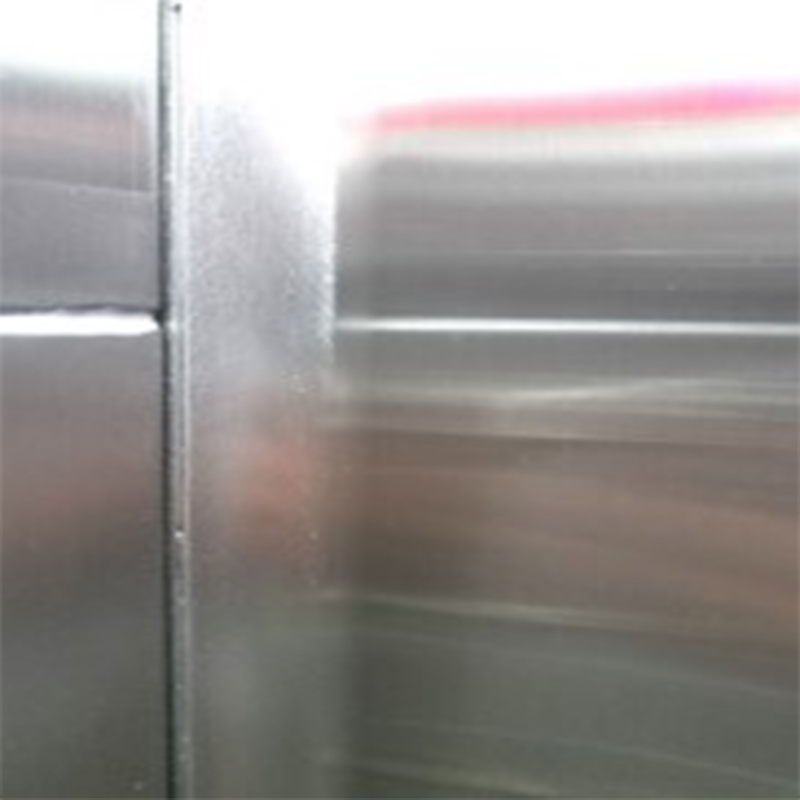

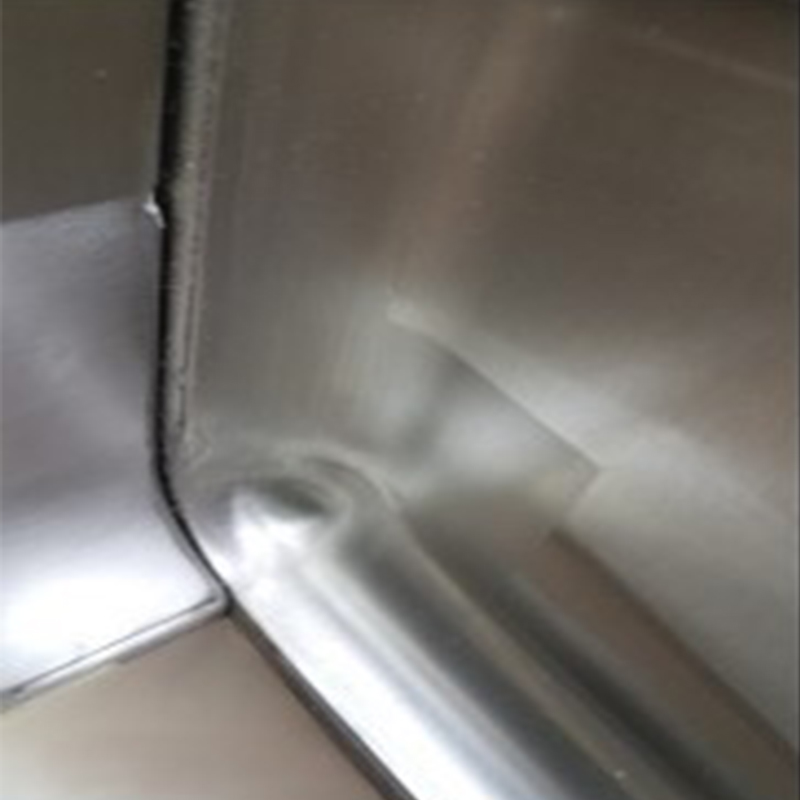

All corner transitions coved 1” radius. Ceiling to a wall corner and floor to wall. The cove is formed into wall panels. No seams.
AC/DC ionization.
View panels in walls.
Audible visual low flow alarm.
Cl-1 Div-1 Electrical outlets.
Remote located control panels.

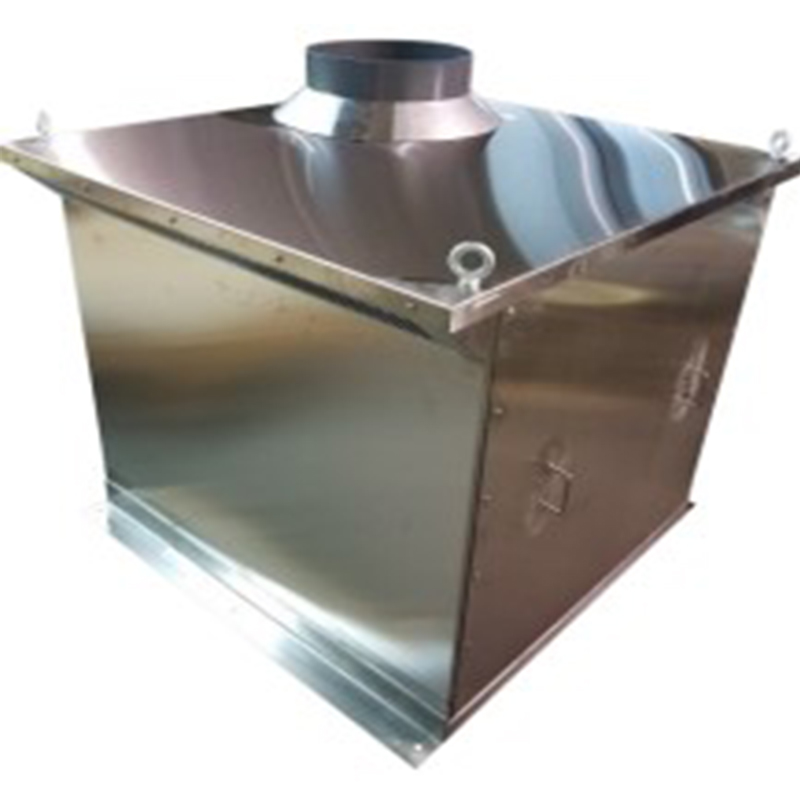

Top-side mounted blower housing.
Roof mounted blower housing with no-loss stack head.
Ducted non-powered modules.
Air flow monitors.
Integral perforated workbench.
Anti static 60 mil clear vinyl strip curtain entry.
Swing door access.
Secondary Articulating sliding barrier with Glove Ports.
Drum Lifts.
Custom sizes and configurations.

Note:

All filters are PSL challenged at the factory. Unit performance meets Fed. Std. 209E and IES-RP-CC-002
Meets all applicable OEL band exposure levels.
USP 797 COMPLIANT.
All electrical wiring is in conformance with NEMA and NEC standards.
Isolation Systems, Inc. inspection reports are available upon request.
